Flare-on is an annual CTF style challenge organized by Fire-eye with a focus on reverse engineering.
Overall, there were 12 challenges to complete. Instead of detailed write-up, I am just covering the important parts.
Following are the instructions to solve these challenges:
1. Analyse the sample and find the key
2. Each key looks like an email address and ends with @flare-on.com
3. Enter the key for each challenge in Flare-on CTF app to unlock next challenge
4. Complete all the puzzles and win a prize
Flare-On 2017 challenges - download
Password - flare
Challenge 1 : Login.html
The first challenge was very simple. There is an HTML file having text input form. We need to provide the flag to check for its correctness.
Here is the content of login.html
<!DOCTYPE Html /> <html> <head> <title>FLARE On 2017</title> </head> <body> <input type="text" name="flag" id="flag" value="Enter the flag" /> <input type="button" id="prompt" value="Click to check the flag" /> <script type="text/javascript"> document.getElementById("prompt").onclick = function () { var flag = document.getElementById("flag").value; var rotFlag = flag.replace(/[a-zA-Z]/g, function(c){return String.fromCharCode((c <= "Z" ? 90 : 122) >= (c = c.charCodeAt(0) + 13) ? c : c - 26);}); if ("PyvragFvqrYbtvafNerRnfl@syner-ba.pbz" == rotFlag) { alert("Correct flag!"); } else { alert("Incorrect flag, rot again"); } } </script> </body> </html>
By looking at c.charCodeAt(0) + 13 we can say that it is the algorithm for ROT-13.
It is taking the input, performs ROT-13 and compares it with "PyvragFvqrYbtvafNerRnfl@syner-ba.pbz".
So, we can say our key is encoded with ROT-13.
To decode this, we can use online converter. Just put encoded key in ROT13 section, you will get the decoded key.
Key : ClientSideLoginsAreEasy@flare-on.com
Challenge 2 : IgniteMe.exe
This is a crack me challenge. It is a command line tool, takes a input from user and checks whether it is correct or not.

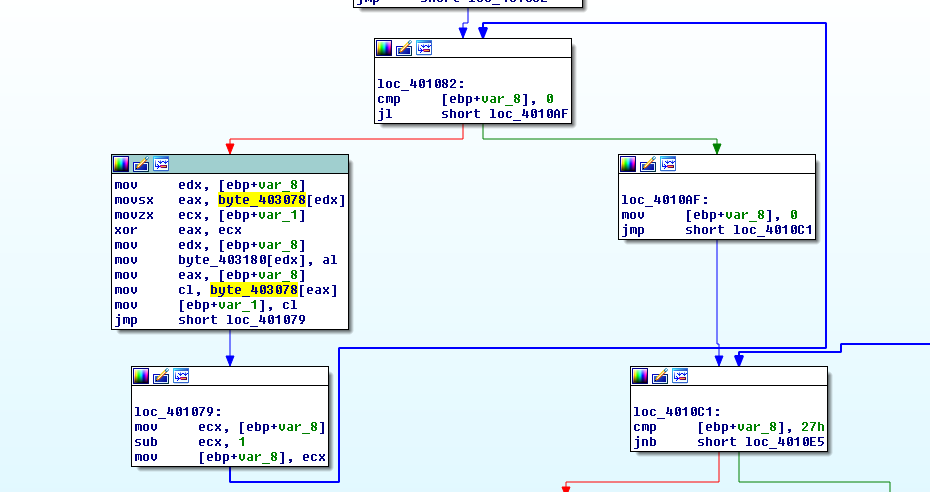

In the function 401050, you can see where the input is processed by xor loop.
The XOR key is hardcoded and which is 0x4, This function xor input data with 0x4 in reverse order and compare it against the hardcoded encrypted data.
So, we have encrypted data and encryption key, we know the algorithm.
Here is the python script to get the key.
enc = bytearray.fromhex("000D2649452A1778442B6C5D5E45122F172B446F6E56095F454773260A0D1317484201404D0C0269") key = 0x4 out = "" for i in range(len(enc)-1, 0, -1): out += chr(enc[i] ^ key) key = enc[i] ^ key print out print out[::-1]
Key : R_y0u_H0t_3n0ugH_t0_1gn1t3@flare-on.com
Challenge 3 : greek_to_me.exe
The executable will start a listening socket on port 2222 and waits to receive data in a small buffer.
When you reverse engineering the binary, you will see the buffer is transferred to a 8-bit register that means input is an ascii character ranging from 0x0 to 0xff.
With the help of this character it performs some operation on data at 0x40107c.
You can see the code at 0x401029.
To decrypt the data properly we need the character input character.
We have to create a client for this binary and brutforce input from 0 to 0xff and print the output.
Here I have implemented below client in python.
import os import socket import subprocess HOST = 'localhost' PORT = 2222 ADDR = (HOST,PORT) BUFSIZE = 4 for byte in range(0xff): subprocess.Popen(r"C:\Users\IEUser\Desktop\script\greek_to_me.exe") bytes = chr(byte) print hex(byte) client = socket.socket(socket.AF_INET, socket.SOCK_STREAM) client.connect(ADDR) client.send(bytes) while True: data = client.recv(100) if not data: break print data client.close()
If the byte is correct we will get the output like "Congratulations! But wait, where',27h,'s my flag?".
We will get this message at byte 0xa2, that's it our final byte is 0xa2.
Now, we have the data at 0x40107c, we have the xor key 0xa2 and we know the operations.
So, I have written below python code to get the key.
data = bytearray.fromhex("33E1C49911068116F0329FC49117068114F0068115F1C4911A06811BE2068118F2068119F106811EF0C4991FC4911C06811DE6068162EF068163F2068160E3C49961068166BC068167E6068164E80681659D06816AF2C4996B068168A9068169EF06816EEE06816FAE06816CE306816DEF068172E90681737C") for key in range(1, 0xff): data1 = bytearray(0x80) for i in range(len(data)): print data[i] print key data1[i] = data[i] ^ key data1[i] = data1[i] + 0x22 print data1
Key = et_tu_brute_force@flare-on.com
Challenge 4 : notepad.exe
This binary is infected notepad.exe which is patched with some other code.
At the start, it searches for the files in "%USERPROFILE%/flareon2016challenge" directory.
This was the hint, we need Flare-On 2016 binaries to solve this challenge.
The loop at 0x1014EAD performs a lookup in directory and calling the function at 0x1014E20 when a file is found.
This loop checks the executable files in the directory and takes the timedatestamp of the file and compare it to hardcoded timdatestamp. If these two values are same then below two functions are called successively.
1. Function at 0x1014350, It will format timestamp of mapped file and display it through MessageBox.
2. Function at 0x1014BAC, It will open a file key.bin in flareon2015challenge directory and write 8 bytes from some offset of mapped file.
Look at the pseudo code of function2.
It is comparing timestamp of a file with hardcoded value.
So if you see the timestamp of first 4 challenges of Flare-on 2016 you will get the idea.
Just put those 4 files in the directory and tweak notepad.exe to update its timestamp.
After 4 executions we get the key.bin properly filled.
When you update notepad.exe with last timestamp, you get the key.
Key : bl457_fr0m_th3_p457@flare-on.com
Challenge 5 : pewpewboat.exe
It is not a PE file but an x64 ELF file hidden ship game.
A 8x8 grid is provided, some of the cells have a ship hidden.
The task is to complete all the levels.
When you execute the file you will see below screen.
Loading first pew pew map... 1 2 3 4 5 6 7 8 _________________ A |_|_|_|_|_|_|_|_| B |_|_|_|_|_|_|_|_| C |_|_|_|_|_|_|_|_| D |_|_|_|_|_|_|_|_| E |_|_|_|_|_|_|_|_| F |_|_|_|_|_|_|_|_| G |_|_|_|_|_|_|_|_| H |_|_|_|_|_|_|_|_| Rank: Seaman Recruit Welcome to pewpewboat! We just loaded a pew pew map, start shootin'! Enter a coordinate:
We just have to enter the right coordinate and make some alphabet.
You can take snapshot after completion of a level, because we have limited shots and if we lose we have start from the beginning.
Here are the sequences of characters that I found.
FHGUZREJVO
1 2 3 4 5 6 7 8 A |_|_|_|_|_|_|_|_| B |_|X|X|X|X|X|_|_| C |_|_|_|X|_|_|_|_| D |_|_|_|X|_|_|_|_| E |_|_|_|X|_|_|_|_| F |X|_|_|X|_|_|_|_| G |_|X|X|_|_|_|_|_| H |_|_|_|_|_|_|_|_|
On completing all the levels, It displays a following message.
Aye! You found some letters did ya? To find what you're looking for, you'll want to re-order them: 9, 1, 2, 7, 3, 5, 6, 5, 8, 0, 2, 3, 5, 6, 1, 4. Next you let 13 ROT in the sea! THE FINAL SECRET CAN BE FOUND WITH ONLY THE UPPER CASE.
As given in the message, we ROT-13 the letters and we get BUTWHEREISTHERUM.
Providing this to the application we can get the key.
Key : y0u__sUnK_mY__P3Wp3w_b04t@flare-on.com
Challenge 6 : payload.dll
This DLL has only one export function of name EntryPoint.
When we execute this function using rundll32, we get the below message box.
Here is the hint, we have to provide some argument to this DLL.
Let's have a look at the code of export function.
The loop at 0x180005B05 is like strcmp() comparing arg1 to the value form DLL.
When you break at this location, we can get the value from which our argument is compared to.
The argument is comparing with "orphanedirreproducibleconfidence". Let's change the argument value and make this condition satisfied.
So in the last it shows a message box with the key part of 1 byte.
Now let's get back in reverse, where this argument value is coming from.
The answer is in function at 0x180005D30, let's check the pseudo code this function.
So, 25 index is coming from sub_180004760(), it gives value 25 if execute in September.
For argument value, let's check sub_180005C40()
int __fastcall sub_180005C40(unsigned int a1) { __int64 v2; // [sp+0h] [bp-58h]@4 unsigned int i; // [sp+20h] [bp-38h]@1 int v4; // [sp+24h] [bp-34h]@1 __int64 *v5; // [sp+28h] [bp-30h]@1 __int64 v6; // [sp+30h] [bp-28h]@3 DWORD flOldProtect; // [sp+38h] [bp-20h]@1 __int64 v8; // [sp+40h] [bp-18h]@4 unsigned int v9; // [sp+60h] [bp+8h]@1 v9 = a1; v4 = 0x52414E44; sub_180007900(a1 + 0x52414E44); VirtualProtect(&qword_180001000[64 * (unsigned __int64)v9], 0x200ui64, 0x40u, &flOldProtect); v5 = &qword_180001000[64 * (unsigned __int64)v9]; for ( i = 0; i < 0x200ui64; ++i ) { v6 = i; *((_BYTE *)v5 + i) ^= sub_1800078D4(); } return sub_180005E90((unsigned __int64)&v2 ^ v8); }
This function is for making argument value, it takes encrypted data from address 0x180001000 and decrypt it using xor loop.
The argment is passing to this function is 25, means it will always takes last 0x200 bytes of data. so we need to modify this parameter during debugging.
It will use 25th key to decrypt 25th region and reveals the 25th part of the key.
Repeat this procedure with index from 0 to 24, you will get each part of the key through message box.
key[0] = 0x77
key[1] = 0x75
key[2] = 0x75
key[3] = 0x75
key[4] = 0x74
key[5] = 0x2d
key[6] = 0x65
key[7] = 0x78
key[8] = 0x79
key[9] = 0x30
key[10] = 0x72
key[11] = 0x74
key[12] = 0x73
key[13] = 0x40
We will stop at '@' as we know it has to end with @flare-on.com
Key : wuuut-exp0rts@flare-on.com
To be continue...
